How to Choose a Paint Sprayer (2026 Guide) Buying Guide
Photo by Tima Miroshnichenko / PexelsThe most common paint sprayer mistake is buying an airless sprayer for furniture or cabinets. Airless sprayers atomize paint at high pressure and move large volumes quickly — perfect for exterior walls, but they create heavy overspray and hard-to-control atomization on small or detailed work. Matching the sprayer type to the scale and detail level of your project prevents wasted paint and frustrating results.
HVLP vs Airless: The Core Distinction
HVLP (High Volume, Low Pressure) uses high air volume at low pressure (6–10 PSI at the air cap) to atomize paint. The low pressure keeps overspray minimal — 65–85% of paint reaches the surface vs 25–45% for airless. The trade-off: lower transfer rate means slower coverage on large surfaces. HVLP is optimal for furniture, cabinets, doors, trim, and any finish work where control matters more than speed.
Airless sprayers use a piston pump to pressurize paint to 1,500–3,000 PSI, atomizing it through a small tip orifice. They cover large surfaces very fast with no air supply needed, but the high pressure creates significant overspray and requires masking of surrounding areas. Best for: exterior siding, fences, large wall surfaces, deck staining.
HVLP Types: Handheld vs Turbine
Handheld HVLP sprayers (Wagner Flexio, HomeRight): gravity or suction feed cup attached directly to the gun. Affordable ($50–$150), compact, easy for beginners. Cup capacity limits continuous run time (refill every 5–15 minutes). Good for homeowners doing occasional projects, trim, furniture. Turbine HVLP (Fuji, Apollo): a turbine unit generates the high-volume air, attached to the gun by a hose. No cup interruption, more consistent pressure over long runs, finer atomization. $200–$800. Better for regular users and high-quality finish work on cabinets or furniture.
Viscosity: Thinning Requirements
Paint sprayers require thinner paint than brush or roller application. Most HVLP and handheld sprayers need paint thinned 10–20% with water (latex) or mineral spirits (oil-based). Too thick = clogging and uneven atomization; too thin = runs and drips. Airless sprayers handle thicker materials (heavy latex, exterior paint, some primers) without thinning. The viscosity cup test: dip the included cup, hold it vertical, and time how long the stream runs — most sprayers specify a target time (e.g., 20–30 seconds for HVLP).
Tip Size and Spray Pattern
Tip size (orifice) determines flow rate. For thin materials (stains, lacquers): 0.009–0.011 inch. Latex interior paint: 0.013–0.017 inch. Heavy latex, exterior paint: 0.017–0.021 inch. The spray pattern width (fan) adjusts via the tip or sprayer control. Start with a vertical pattern for horizontal surfaces and a horizontal pattern for vertical surfaces — counter-intuitive but correct.
Cleanup
Cleanup is where many first-time sprayer owners are surprised. HVLP cups need to be emptied and rinsed after each session. For latex paint, clean with warm water immediately — don't let paint dry inside the gun. Purge the hose and needle with clean water. Airless sprayers require more thorough flushing due to the pump system. Budget 15–20 minutes for cleanup. This time cost is why sprayers make economic sense for larger projects but not for painting one wall.
How We Developed This Guide
We analyzed 20+ paint sprayer models across the handheld, HVLP turbine, and airless categories, drawing on professional painter and finisher community feedback from r/finishing and paint contractor forums. Transfer efficiency, atomization quality at each price tier, and real-world cleanup time data informed our recommendations.
Our Picks and Why

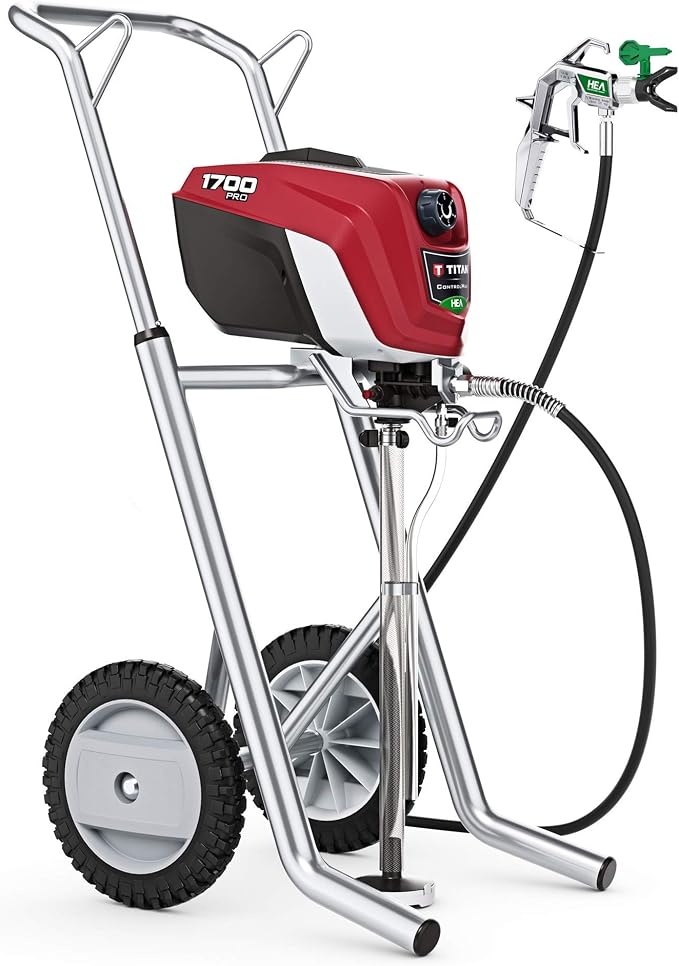

The Titan Control Max 1700 earns the top spot for whole-house and exterior work — its high-efficiency airless design moves a lot of paint while cutting overspray compared with older airless units, and it sprays unthinned latex straight from the bucket. For someone who wants airless speed with less overspray on fences, decks, and siding, the Wagner Control Pro 130 is the better choice — lower pressure means less bounce-back and easier cleanup. The Graco Magnum X7 rounds out the top three as the do-everything homeowner pick: enough hose to work off the ground without dragging the unit around, and a long enough track record that replacement parts are easy to find.
Watch Before You Buy
“”
See Today’s Price →What we like
- Airless technology atomizes thick latex without thinning — straight from the can to the wall
- 1700 PSI covers large deck and exterior house siding projects efficiently
- Adjustable tip allows switching between broad exterior coverage and detail trim work
- Reverse-tip clears clogs with a simple twist-and-push without stopping to manually clear
Watch out for
- Produces significant overspray at 1700 PSI — masking and covering furniture is required before use
- High-velocity airless is overkill for small furniture refinishing — HVLP is better for those projects
“Wagner's Control Pro 130 is a high-volume low-pressure (HVLP) sprayer suited for large paint projects including fences, decks, and furniture. The large-capacity hopper reduces refill stops and the ext”
See Today’s Price →What we like
- HVLP technology significantly reduces overspray compared to airless sprayers — less masking required
- Handles most exterior latex paints without thinning, uncommon for consumer HVLP units
- 3 spray patterns (horizontal, vertical, round) adjust for walls, ceilings, corners, and detail work
- Lightweight and compact — easier to maneuver than turbine or airless systems for indoor projects
Watch out for
- Motor needs rest periods during extended high-volume exterior projects to prevent overheating
- Output volume is lower than Graco or Titan airless units — larger projects take considerably more time
“The Graco Magnum X7 is an airless sprayer designed for larger residential projects — it can spray unthinned latex paint directly from the can with adjustable pressure control. The FlexLiner bag system”
See Today’s Price →What we like
- Fully adjustable pressure from low for thin stains to high for thick latex — one sprayer for all coatings
- Power Flush adapter connects to a garden hose for cleanup in under 3 minutes
- SG2 metal spray gun is more durable than plastic-gun consumer alternatives for seasonal outdoor use
- Project Armor tip handles thicker materials than most consumer airless sprayers
Watch out for
- Airless operation requires thorough masking and drop cloth coverage to control overspray
- At $300+ more expensive than entry-level HVLP sprayers — best justified for large surface areas
Frequently Asked Questions
What type of paint sprayer should I use for furniture?
Can I use a paint sprayer indoors?
Do I need to thin paint for a sprayer?
What's the difference between HVLP and airless sprayers?
How long does it take to clean a paint sprayer?
What's the best paint sprayer for a beginner?
